DESCRIPTION
ENTRY LEVEL CONVERTER EMBEDDED WITH AWARD-WINNING TECHNOLOGY

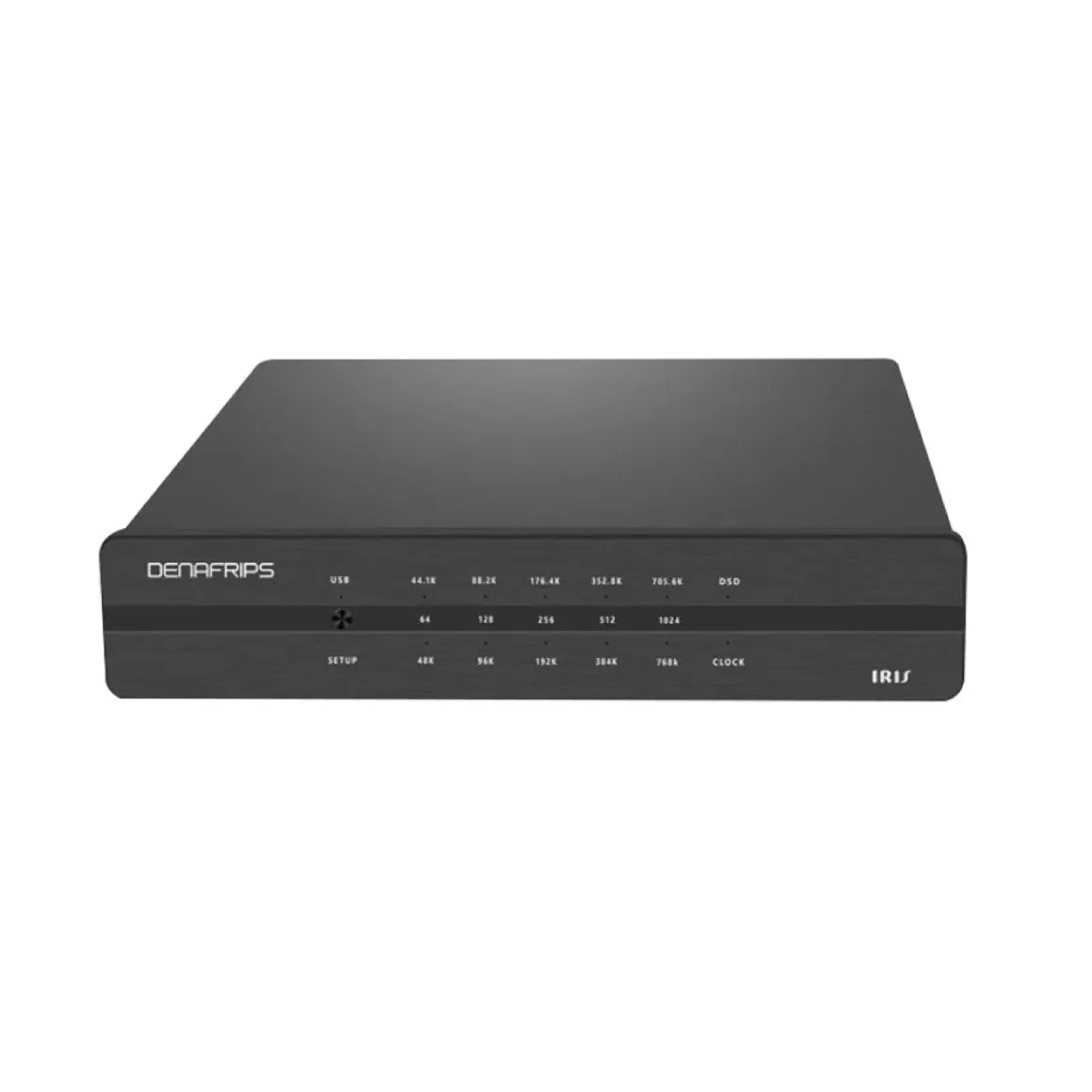

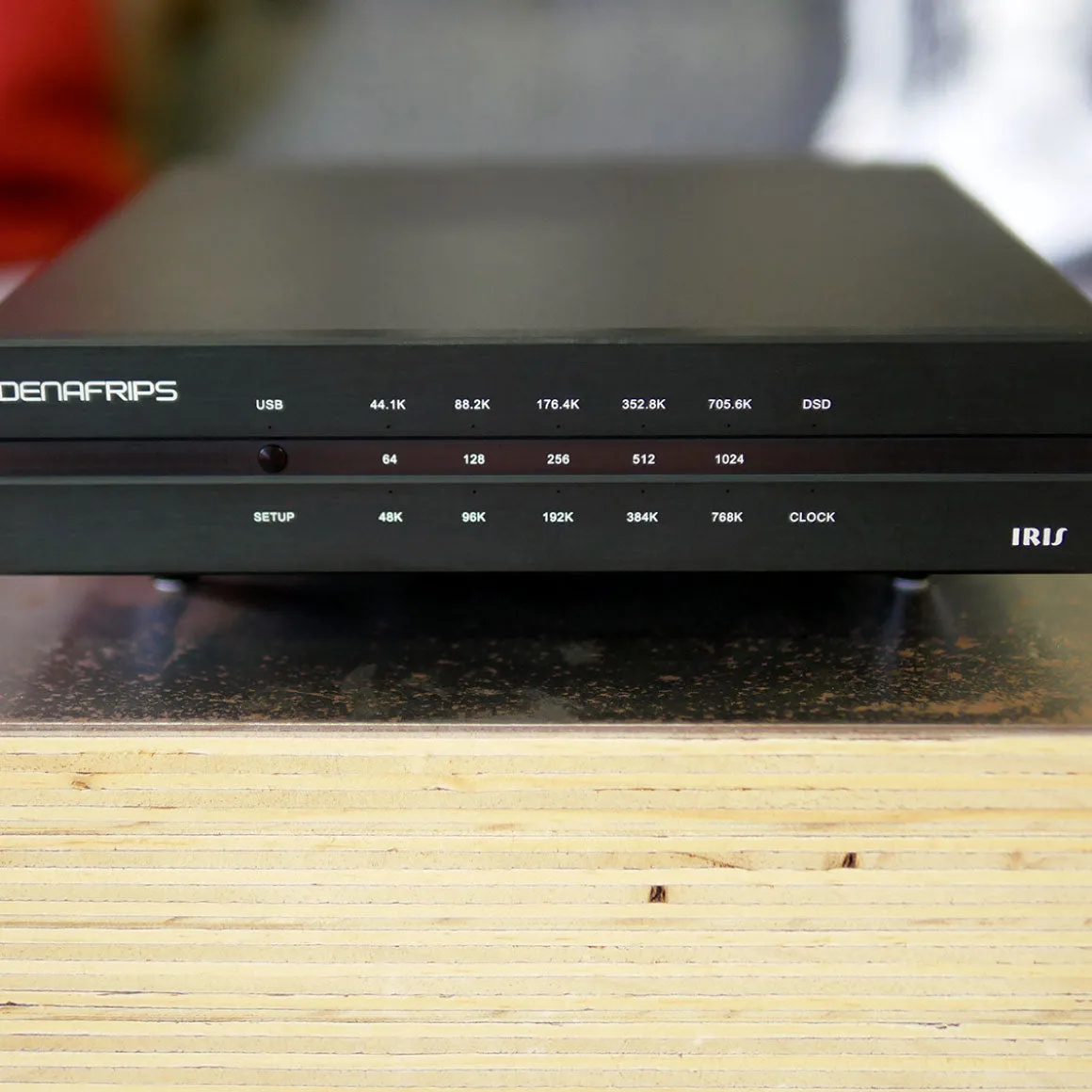

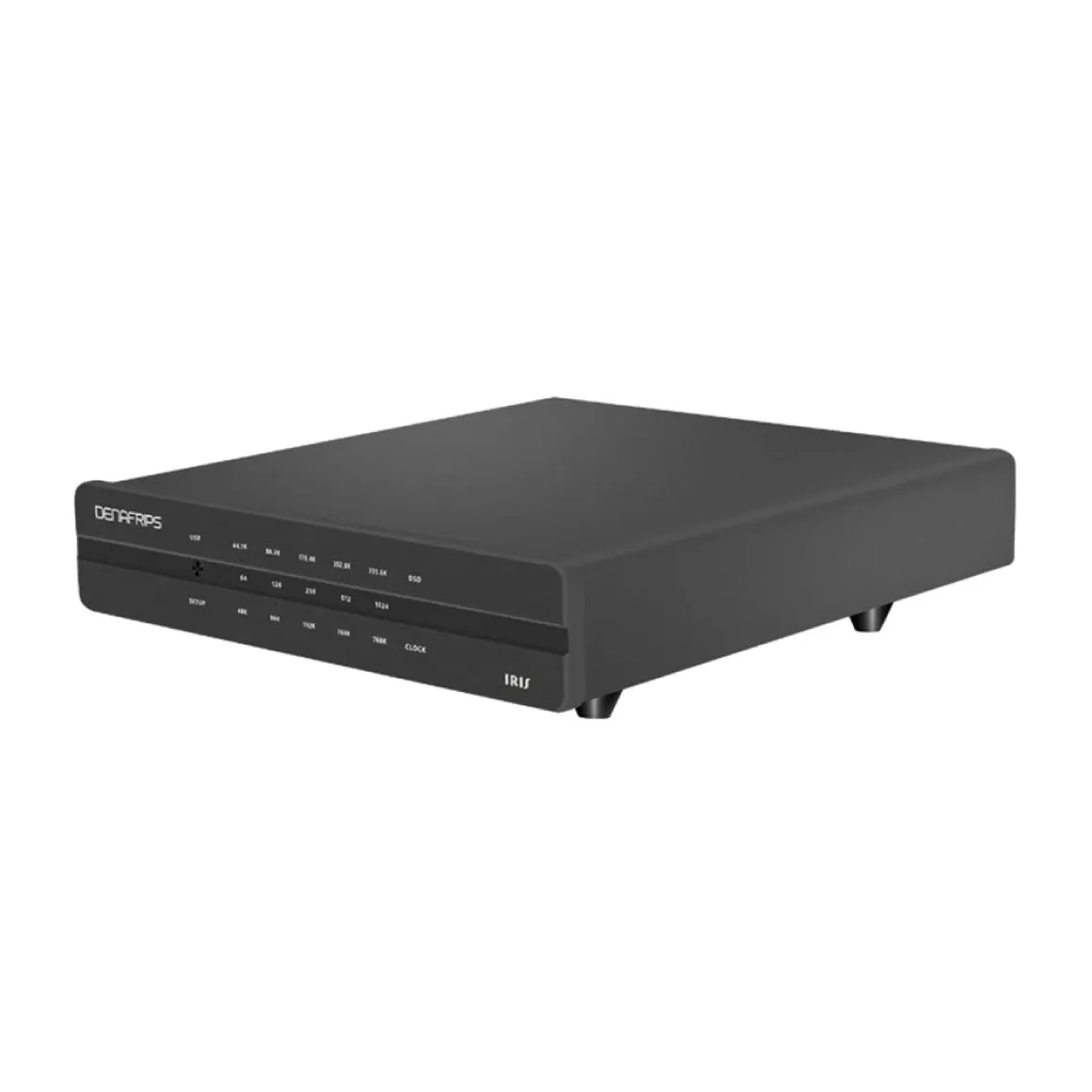

Denafrips IRIS is an entry-level USB Digital To Digital Converter. It took around 3 years to perfect the development of this device and leverages the technologies found in Denafrips award-winning DAC, namely, Proprietary FPGA DSP Processing, FIFO Buffer & Reclocking.
COMPACT IN SIZE, BIG IN SOUND

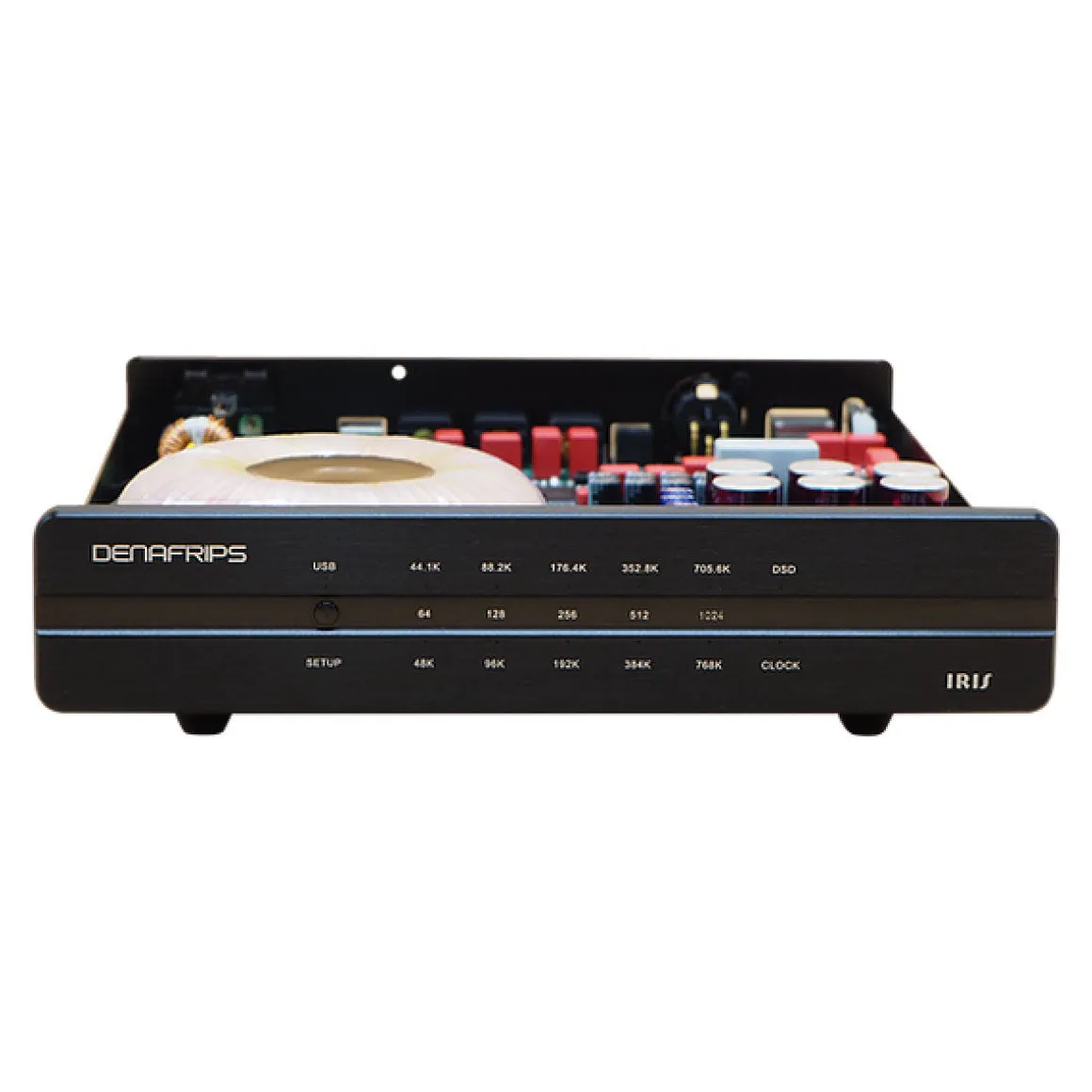

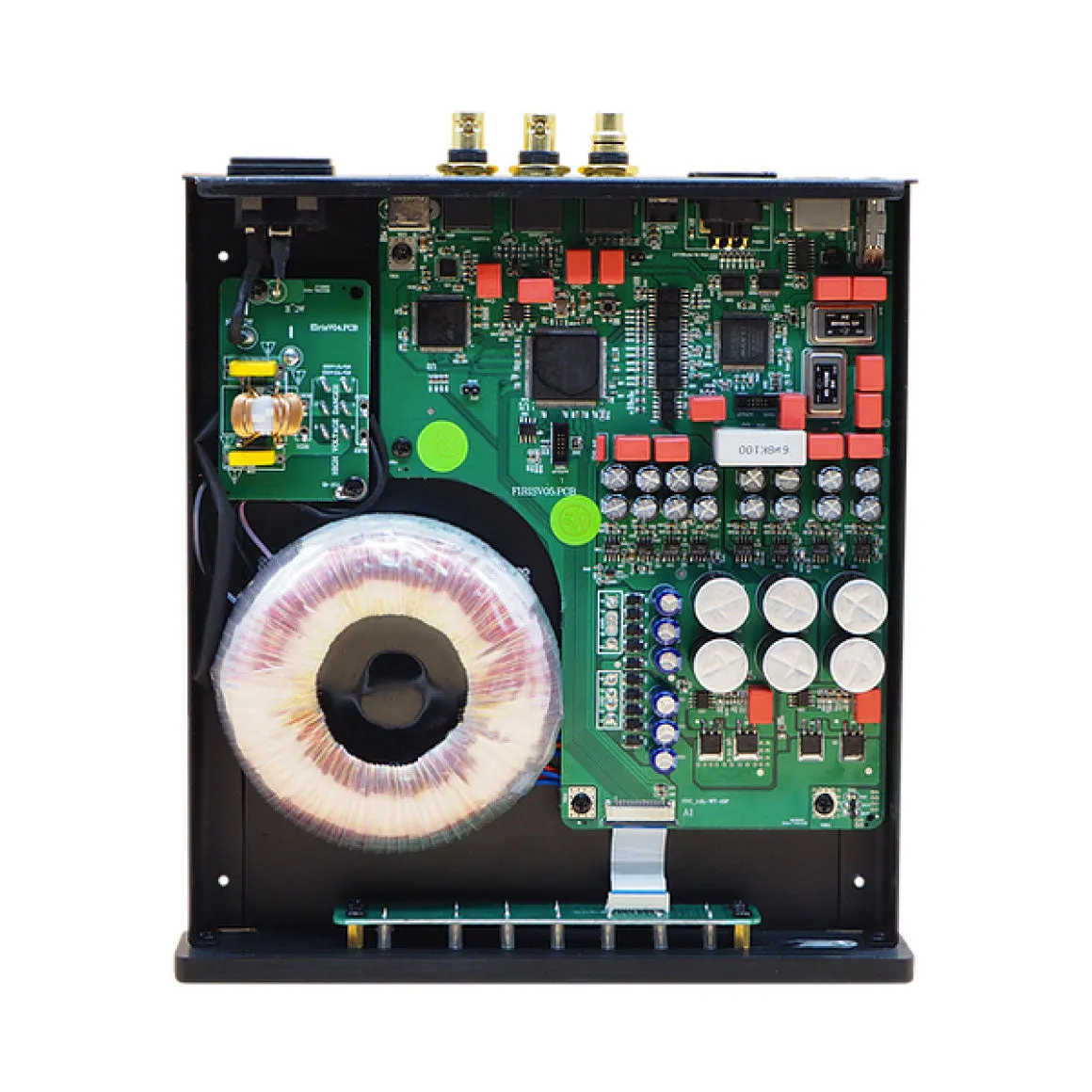

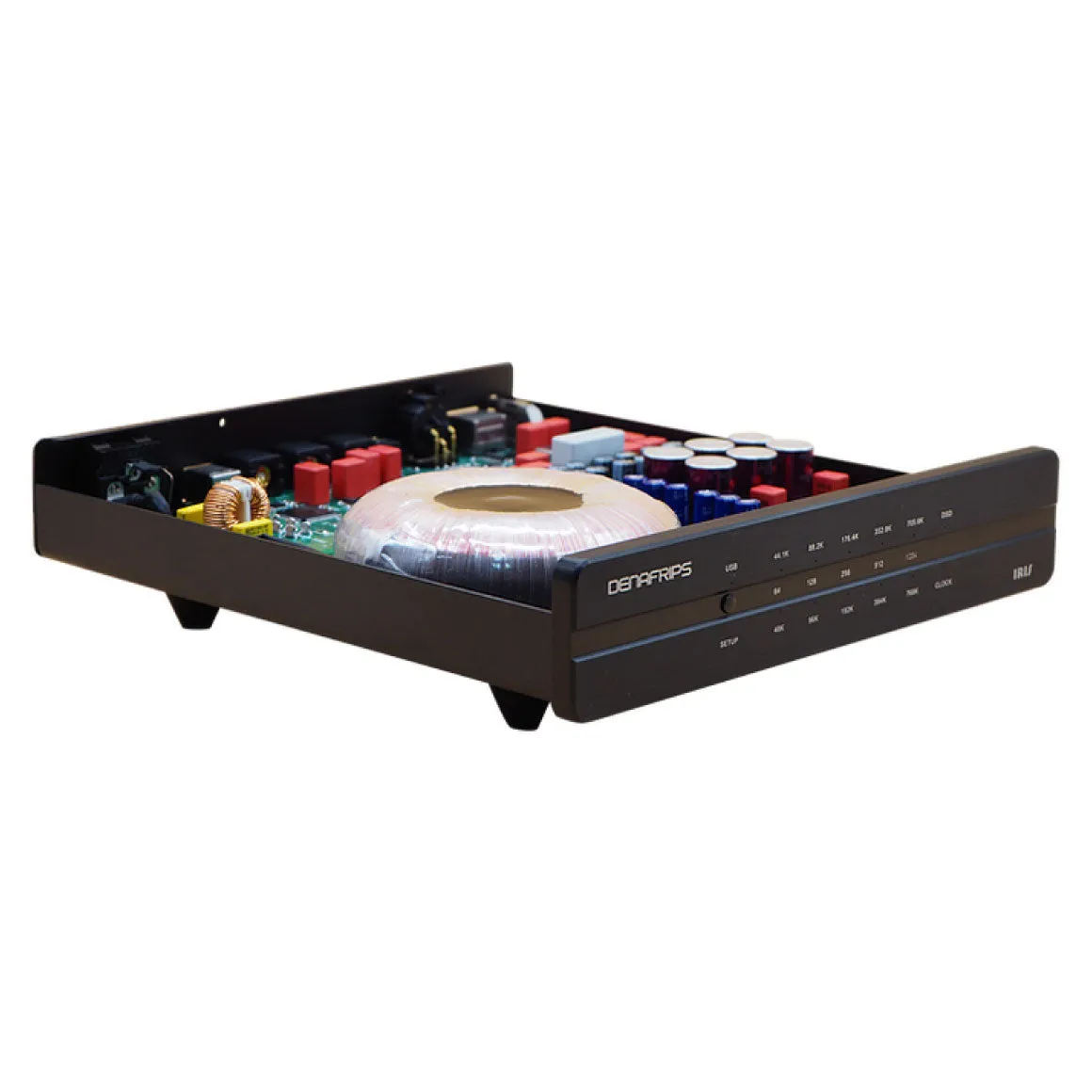

Denafrips IRIS employs a total of 8 sets of Ultra Low Noise, Precision Linear Power Regulars, along with oversized O-Core Transformers. This delivers clean power to the digital circuit effortlessly. These USB digital signal data-stream will be FIFO buffered and reclocked via the FEMTO Crystal Oscillator. This process eliminates the jitter to a negligible level, ensuring the digital output signal is free from harmful jitter noise.
ELEVATE YOUR COMPUTER AUDIO SYSTEM
If you are on the lookout for a USB Digital to Digital converter that can potentially improve the sonic performance of CAS (Computer Audio System), look no further. Get the Denafrips IRIS to transform your Computer (PC/Mac/RPI/etc) into a good quality transport. The IRIS works with most DAC brands & models in the market. Own it and get it set up in your system to hear the difference.
SEAMLESS COMPATIBILITY
IRIS is designed to be used effortlessly across all operating systems. The device comes along with Licensed Thesycon USB Driver For Windows Platform and is plug and play compatible with Mac and Linux.
SPECS
D/D CONVERTER | Proprietary FPGA DSP Processing Architecture FIFO Buffer and Reclock with Internal Crystal FEMTO Crystal Oscillator Optical Isolated All Digital Input Interfaces Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux External Clocks Input Supported |
DSD | DSD64-DoP On All Output Upto DSD512 On USB Input & I²S Output |
PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Output Up to 768KHz On USB Input & Up to 384KHz on I²S Output |
DIGITAL INPUT | USB |
EXTERNAL CLOCK INPUT | 45.1548MHz 49.152Mhz |

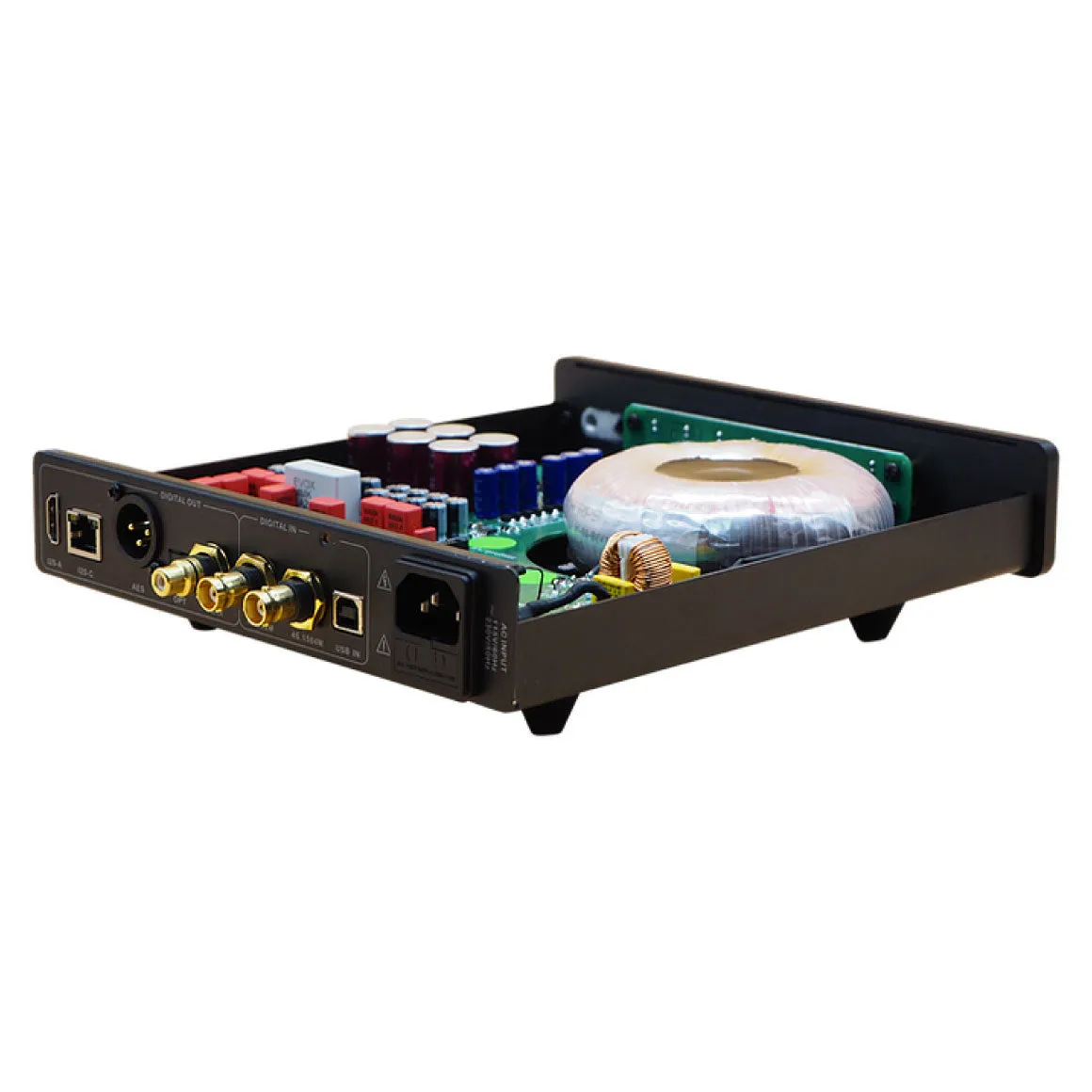

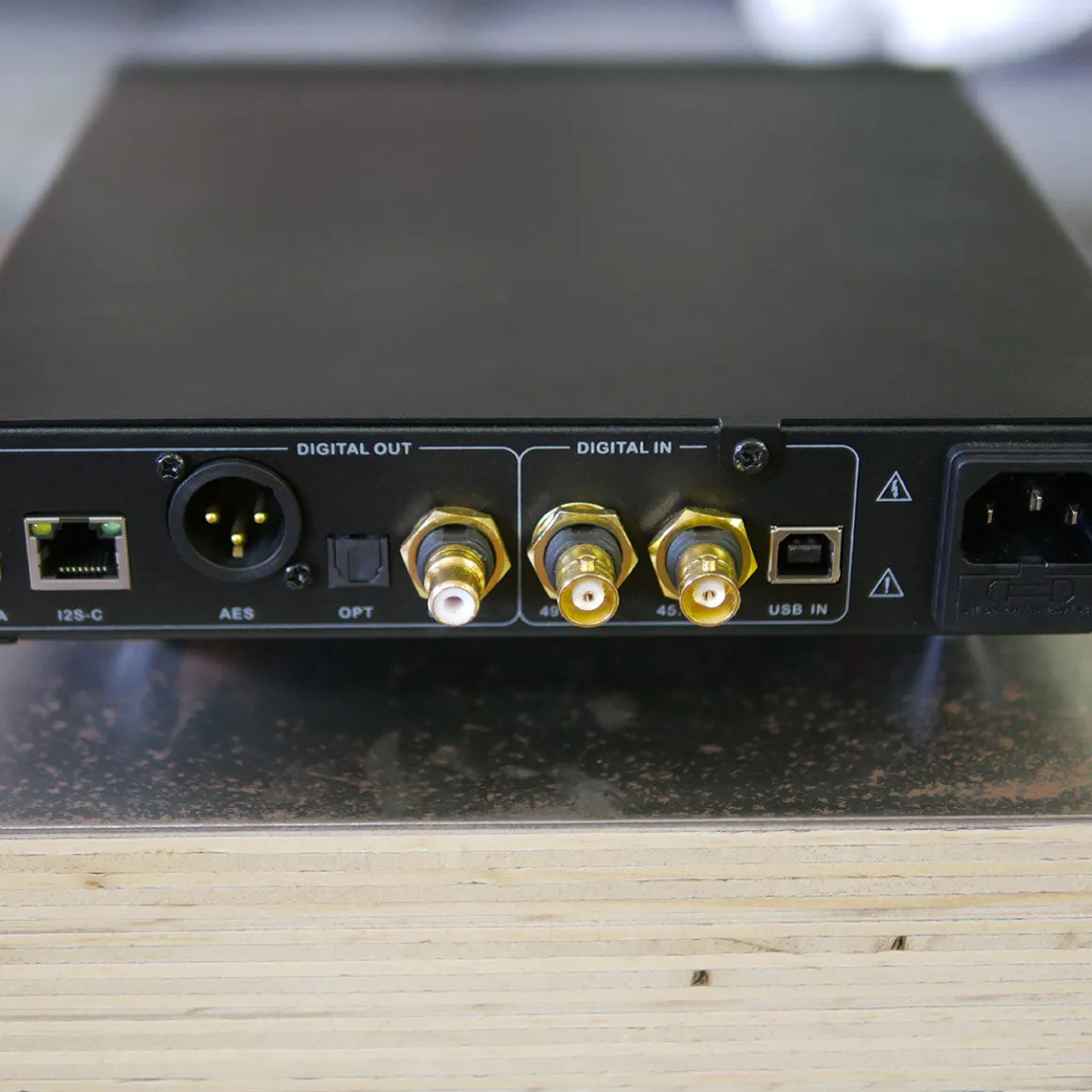

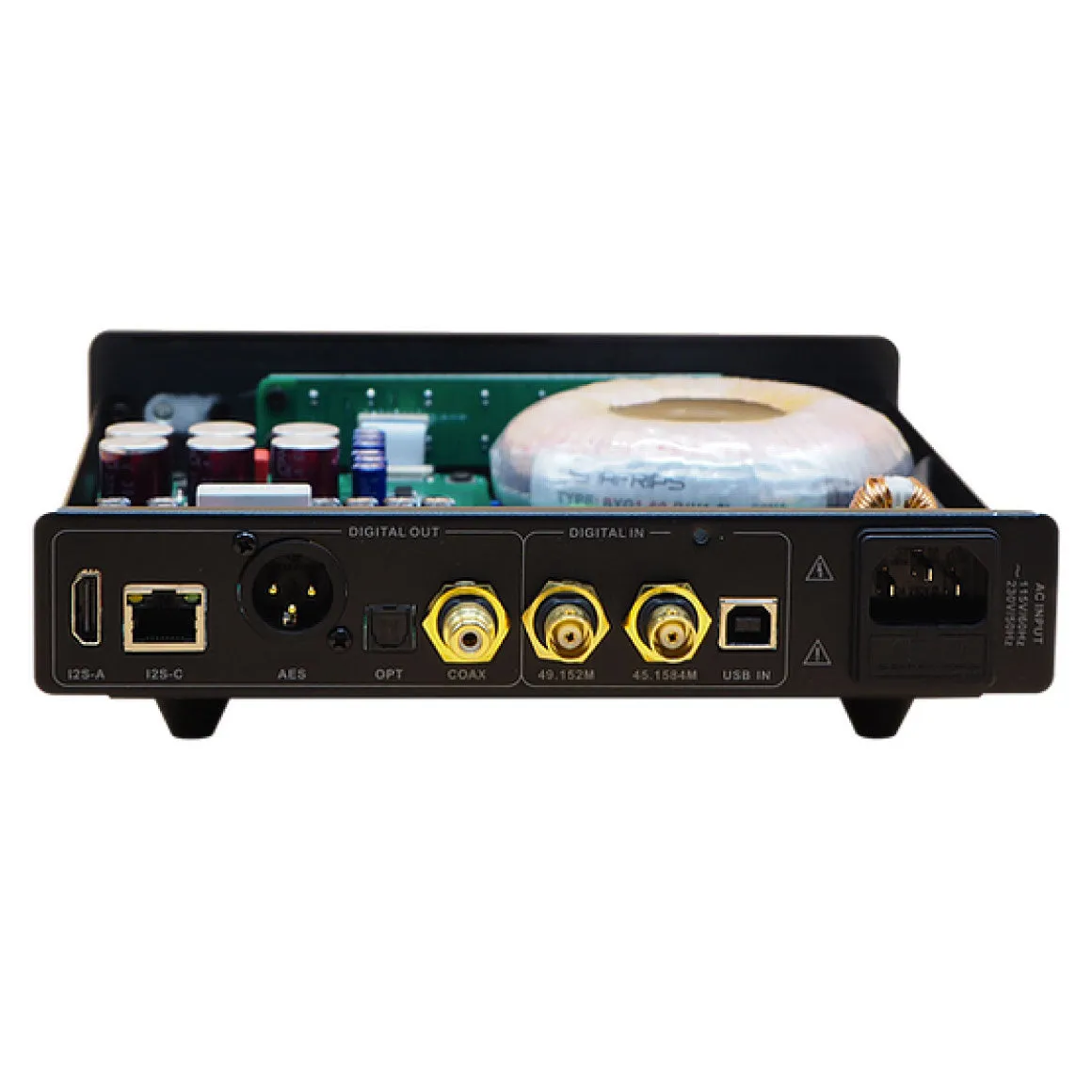

DIGITAL OUTPUT | Coax SPDIF via RCA TOSLink x 1 AES/EBU x 1 I²S HDMI LVDS Standard I²S RJ45 LVCMOS Standard |
AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage, Manual Selector) |
POWER CONSUMPTION | ≤20W |
DIMENSIONS | 220W x 250D x 44H mm (Feet 18mm) |
WEIGHT | 3.5 Kg |
COLOR | Black |
BOX CONTENTS | 1. Denafrips IRIS |
2. User Manual |
