Product Details
＋

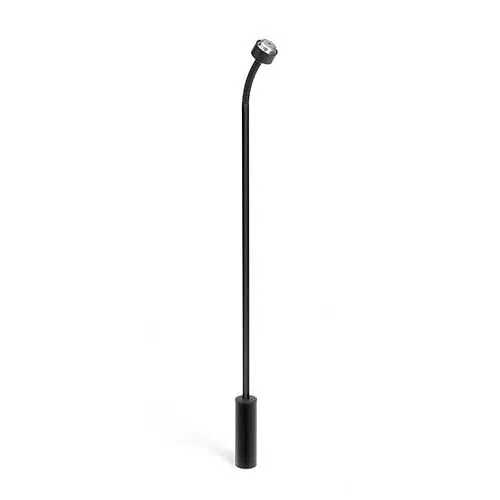

The MMP-F Modular Active Boom, 75cm with Gooseneck Top by DPA Microphones is a preamplifier and output stage for DPA Reference Standard MMC series capsules. The modular capsule attaches to the MMP-F preamplifier. When used with a DPA microphone capsule it provides power for podium, floor stand, or table top microphone. The MMP-F provides and XLR output and 48V phantom power via an external source. It features impedance balancing with active drive and has excellent radio frequency rejection. The optional stands are sold separately.
Compatible With The Following Capsules:
MMC4006 Omni Microphone Capsule
MMC4007 Omni Microphone Capsule, 12mm
MMC4011 Cardioid Microphone Capsule
MMC4015 Wide Cardioid Microphone Capsule
MMC4017 Shotgun Microphone Capsule
MMC2006 Twin Diaphragm Omni Microphone Capsule
MMC2011 Twin Diaphragm Cardioid Microphone Capsule
MMC4006 Omni Microphone Capsule
MMC4007 Omni Microphone Capsule, 12mm
MMC4011 Cardioid Microphone Capsule
MMC4015 Wide Cardioid Microphone Capsule
MMC4017 Shotgun Microphone Capsule
MMC2006 Twin Diaphragm Omni Microphone Capsule
MMC2011 Twin Diaphragm Cardioid Microphone Capsule
DPA Microphones MMP-F75 Specs
| Output Connector | XLR-3M. Pin 1: shield, Pin 2 signal phase, Pin 3: - phase |
| Low-Cut Filter | -3 dB: 15 Hz |
| Noise | Noise with shorted input, A-weighted: 0.6 µV |
| Output Voltage | RMS: 2.2 V Peak: 3.1 V |
| Type Of Electronic Circuit | Active |
| Total Harmonic Distortion (THD) | @1VRMS, 1kHz: < 0.2 % |
| Dynamic Range | 131 dB |
| Output Impedance | 100 Ω |
| Minimum Load Impedance | 2 kΩ |
| Current Consumption | 3.5 mA |
| Output Balance Principle | Impedance balancing |
| Common Mode Rejection Ratio | > 40 dB |
| Power Supply | For Full Specifications: 48 V Phantom power (± 4 V) |
| Cable Drive Capability | 328' (100 m) |
| Filters | High Boost: 4 dB at 8 kHz. Low cut: First order filter, below 120 Hz |
| Temperature | -40 to 113 °F (-40 to 45 °C) |
| Relative Humidity | Up to 90% |
| Diameter | 0.75" (19 mm) |
| Boom Length | 75 cm |
| Dimensions | 1.6 x 0.75" (41 x 19mm) |
| Weight | Not listed by manufacturer |
